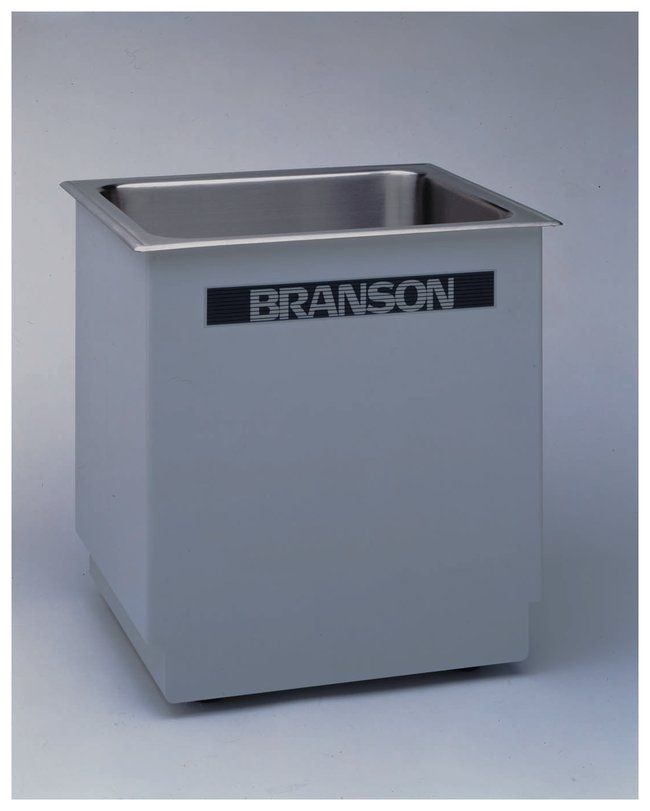

This low cost ultrasonic cleaner is designed especially for medium and heavy duty industrial applications. It is fully integrated, with ultrasonic generator and cleaning tank in a single enclosure. Solution capacity is 10 gallons – enough to handle large, bulky parts or for batch cleaning of small components. It’s the only industrial size ultrasonic cleaner of its type available today.
MANY SOLUTIONS AND USES
The DHA-1000 unit is suitable for use with alkaline, mildly acidic, neutral or caustic aqueous solutions to clean electronic and electrical subassemblies, fabricated metal or plastic components; glass and other materials prior to inspection, assembly or further processing.
RUGGED STAINLESS STEEL TANK
Its deep-drawn tank of 304L stainless steel has no corner welds or other dirt-catching surfaces. The tank is insulated for low heat loss and low noise operation. Low-watt density heaters maintain the cleaning solution at the proper temperature for maximum cleaning effectiveness. High efficiency piezoelectric transducers are attached to the tank bottom. The tank also has a stainless steel drain.
DEPENDABLE SOLID STATE CIRCUITRY
All circuitry is solid state for long, trouble-free life. There are no fans or other moving parts to wear out. Separate heater and generator controls are provided, and the unit is equipped with a R.F.I. filter to meet FCC radio frequency interference standards. Because the Branson DHA-1000 cleaner is a completely self-contained integrated unit, installation requires only a power connection.
Specifications
- OVERALL SIZE – 17″ x 19″ x 19″
- TANK SIZE – 14″ x16″ x 10.5″
- WEIGHT – 70 lbs
- FREQUENCY – 40 kHz
Ordering Information
DHA-1000 (120V Model) – 000-914-506
DHA-1000 (230V Model) – 000-914-606
Accessories
Cover – 100-246-802
Basket – CPN-916-032
