“smart cavitation meters for your cleaning tanks”
Measures both Cavitation energy and frequency in your ultrasonic or megasonic tanks, which allow you to:
- measure your cleaning tank performance
- set your tank energy level
- establish tank to tank uniformity
- map the energy variations in your tank

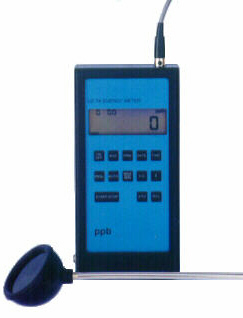

ppb manufactures four models of meters that measure the cavitation energy and frequency within ultrasonic and megasonic cleaning tanks:
- pb-500 Ultrasonic Energy Meter (0 to 500 kHz)
- pb-100 Ultrasonic Energy Meter II (0 to 500 kHz)
- pb-501 Megasonic Energy Meter (500 kHz to 5 MHz)
- pb-502 Ultrasonic/Megasonic Energy Meter (0 to 5 MHz)
The multifrequency meters detect the RMS energy in W/in2 and also detect the frequency. Readings are processed 1.5 times per second for fast and accurate display on the front panel LCD.
The meter is battery operated with 100 memory locations. PLC compatible with RS-232 downloading capabilities of date, time, average cavitation energy, standard deviation, maximum, minimum and frequency.
As a low cost version of the Ultrasonic Energy Meter, the Ultrasonic Energy Meter II measures and displays only instant cavitation energy. All other features are disabled.
Specifications
pb-208 Standard probe suitable for most ultrasonic and megasonic solutions. The probe has three components that come in contact with the liquid:
- HALF SPHERE Made of Ethylene Propylene (EPDM), angled at 45° with the probe tube, 2” dia.
- TUBE Made of 1/4” OD 316 Stainless Steel with a Teflon wrapping, 20” long.
- LENS Made of Quartz (optional sapphire for HF).
- pb-308 New All-Quartz probe suitable for almost all ultrasonic and megasonic cleaning solutions, including NMP, SC1 and SC2. The sensor is located at the tip.
- ROD Made of Quartz, 1/2” OD, 19” long, sealed.
- RANGE 0 to 255 W/in2 (W/gal).
- DISPLAY Custom LCD.
- FLUID TEMP 1 °C to 80 °C (to 200 °C pb-308).
- MEMORY 100 sets: loc, date, time, avg, s, max, min, Dt.
- OUTPUT RS-232 or serial (9600, 8, 1, n, p).
- INPUT Standard 7.2-volts battery charger (220/110 Voltage adapter available).
- POWER 7.2-volts Ni-Cad rechargeable.
- CASE MATERIALS Aluminium with Polyurethane baked enamel black paint.
- DIMENSIONS Case, 4” W x 8” L x 2” H.
- WEIGHT 2 lb. Complete.
NIST Traceable Calibration Certificate available. CE
|
Ultrasonic Energy Meter
|
|
| Part Number | Description |
| pb-500 | Ultrasonic Meter, 0 to 500 kHz |
| pb-208 | EPDM Probe, 20″ L Teflon Handle |
| pb-s60 | Cable, RS-232, 6 ft. long |
| pb-7dc | Battery charger, 7.2 VDC, 100 mA |
| pb-cal | NIST Traceable Calibration Certificate |
| pb-cse | ABS portable/storage case, 6.3 lbs |
| pb-220 | 220/110 voltage converter |
| pb-mnl | Operating Manual |
|
Megasonic Energy Meter
|
|
| Part Number | Description |
| pb-501 | Megasonic Meter, 500 kHz to 5 MHz |
| pb-208 | EPDM Probe, 20″ L Teflon Handle |
| pb-s60 | Cable, RS-232, 6 ft. long |
| pb-7dc | Battery charger, 7.2 VDC, 100 mA |
| pb-cal | NIST Traceable Calibration Certificate |
| pb-cse | ABS portable/storage case, 6.3 lbs |
| pb-220 | 220/110 voltage converter |
| pb-mnl | Operating Manual |
|
Ultrasonic/Megasonic Energy Meter
|
|
| Part Number | Description |
| pb-502 | Ultrasonic/Megasonic Meter, 0 to 5 MHz |
| pb-208 | EPDM Probe, 20″ L Teflon Handle |
| pb-s60 | Cable, RS-232, 6 ft. long |
| pb-7dc | Battery charger, 7.2 VDC, 100 mA |
| pb-cal | NIST Traceable Calibration Certificate |
| pb-cse | ABS portable/storage case, 6.3 lbs |
| pb-220 | 220/110 voltage converter |
| pb-mnl | Operating Manual |
|
Ultrasonic/Megasonic Monitoring Transmitter (Quantity 1-2)
|
|
| Part Number | Description |
| bx-502 | Ultrasonic/Megasonic Transmitter |
| bx-408 | Stainless Steel Probe (tank-mountable) |
| pb-cal | NIST Traceable Calibration Certificate |
| pb-24dc | 24 VDC Power Supply |
|
Ultrasonic/Megasonic Monitoring Transmitter (Quantity 3+)
|
|
| Part Number | Description |
| bx-502 | Ultrasonic/Megasonic Transmitter |
| bx-408 | Stainless Steel Probe (tank-mountable) |
| pb-cal | NIST Traceable Calibration Certificate |
| pb-24dc | 24 VDC Power Supply |
|
Accessories
|
|
| pb-s60 | Cable, RS-232, 6 ft. L |
| pb-7dc | Battery charger, 7.2 VDC, 150 mA |
| pb-408 | Stainless Steel Probe, 14″ L, 1/2″ OD |
| pb-308 | Quartz Probe, 14″ L, 1/2″ OD |
| bx-408 | Stainless Steel Probe, (tank-mountable) |
| bx-308 | Quartz Probe, (tank-mountable) |
| bx-208 | EPDM Probe, Teflon Handle, 20″ L |
CONTINUOUSLY MONITORS CAVITATION ENERGY AND FREQUENCY IN ULTRASONIC AND MEGASONIC CLEANING TANKS
- 4-20 mA & 0-10 Vdc energy outputs.
- 4-20 mA & 0-10 Vdc frequency outputs.
- 0 to 5 MHz (5000 kHz) frequency range.
- DIN Rail and Wall Mountable.
The bx-502 is a panel-mount-ready unit designed to continuously monitor cavitation energy and frequency in your ultrasonic and megasonic cleaning tanks.
It is designed to provide a non-isolated 4 to 20 mA current output and a 0 to 10 Vdc output which are proportional to the cavitation energy density present within a cleaning tank. The unit also provides a non-isolated 4 to 20 mA current output and a 0 to 10 Vdc output which are proportional to the Ultrasonic-Megasonic frequency.
The transmitter may be connected to a PLC or to a dual display for passive monitoring of both the energy and frequency. The transmitter may also be used to maintain and control the tank energy via a PLC or standard controller by providing a feedback to the generator.
Specifications
The transmitter accommodates both the bx-208 or bx-308 probes, which are tank-mountable versions of the pb-208 and pb-308, respectively.
- ENERGY OUTPUT (2) 4 to 20 mA, non-isolated 0 to 10 Vdc.
- ENERGY UNITS W/in2 (W/gal).
- FREQUENCY RANGE 0 to 5 MHz (5000 kHz).
- POWER 22 to 36 Vdc input.
- CASE MATERIALS Aluminium with Polyurethane baked enamel paint.
- DIMENSIONS 4.275″ W x 5.125″ L x 1.928″ H (2.938″ H with DIN Rail Mount).
